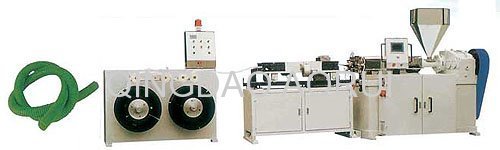

HDPE single-Wall corrugated pipe production line
1.production with high speed
2.fuction lowers
3. automatic

HDPE single-Wall corrugated pipe production line-qingdao aorui plastic machinery co.,ltd

single-wall corrugated pipe of diameter 90-1500mm is a new type plastic pipe.Compared with metal, ceramic, concrete and other pipes, single-wall corrugated pipe has many advantage such as lower weight, lower cost, erosion resistance, smooth inside-wall , high intensity, abrasion resistance, easy connection and so on. So it is used widely for sewerage and drainage system(larger diameter), cable protection system(smaller diameter), etc.

Features of Line:

HDPE single-wall corrugated pipe line is configured with high-efficiency single screw extruder, laminar flow distributor, dual passage spiral composite extrusion die, corrugated forming system, spray cooling water tank, cutting unit and stack unit.

High performance single screw extruder with special screw and grooved feed barrel can ensure good extrusion in high efficiency.

The extrusion die surface is nitrided and polished. A wall thickness-regulating device is equipped in die lip to be suitable for production of different raw materials and ring resistance material. Special structure die make the thickness of the inner and outer wall even, and stable molding. In addtion, it has unique water cooling structure inside and close air flowing structure.

The shuttle corrugated forming system ensures high efficiency extrusion of high quality pipe. The special aluminum alloy mould bolck with anti-adhereing treatment, cooling air, cooling water and vacuum channel inside of mould block ensure good forming structure of pipe and fast cooling speed. Advanced online belling system lowers the investment and increase the efficiency. In addtion, the forming systme is provided with self-protection device for sudden power cut.

The cutting unit can cut pipe in right position by tracking switch. The high quality alloy knife and clamp tools can satisfy different cutting.

The line adopts OMRON or MITSUBISHI PLC computer control system with touch screen interface, which guarantee automatic and reliable operation.

Main Parameter of Line:

Model/ parameter	Pipe diameter Range(mm)	Extruder model	Max. output (kg/h)	Speed of Forming system (m/min)	Number of module blocks (pair)	Belling method	Total installed power(kw)
DBWG-160 PE	90-160mm	DSJ-50X30A DSJ-65X30A	120 180	1-6	41	/	150
DBWG-250 PE	110-250mm	DSJ-50X30A DSJ-65X30A	120 220	1-4	41	On-line belling	200
DBWG-500 PE	200-500mm	DSJ-65X30A DSJ-80X30A	220 400	0.3-3	41	On-line belling	260
DBWG-1000 PE	500-1000mm	DSJ-90X30B DSJ-120X30B	500 900	0.1-2	41	On-line belling	670
